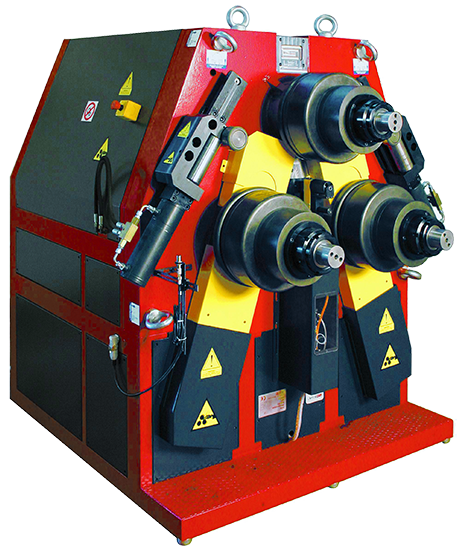

Alpha 160



The ALPHA 160 is a very compact bendign machine with high-performance. It can work vertically and horizontally with an ergonomic work surface. The structure solidity, with the bending rolls rectilinear movement, the placement precision and the variety of tools are some of the recognized strenghts of this innovative bending machine, very appreciated for the work quality with a variety of profiles, that has no equal in any competitors machine.Versions
  • PQ10: A multi-axis positioner able to manage independently the bending machine movable elements
  • CNC4/3:Equipped with CNC4/3 control, Computerized Numerical Control with three axis able to automatically managed joints and bending radii predetermination
  • CNCi:Equipped with CNCi control, the Computerized Numerical Interpolated Control for the predetermination of the bending radii, able to manage untill 1000 steps of a virtually infinite number of storable programms
​Technical Data
  • Driving rolls:3
  • Shaft speed (min-1):4
  • Weight (Kg): 3850
  • Total power (kW):11,4
  • Working height (cm):147/120
  • Size (cm):195x190x190
    in mm      Min. R.   Tools
Alpha 160 6aUPN 260
UPN 400
1100
2000
ST
SP – AL – TR
Alpha 160 7aHEA 200
HEA 240
2500
3000
ST
ST – SI
Alpha 160 7bHEB 120
HEB 160
3200
3500
ST – HE/HEH
ST- HE/HEH – SI


Application Fields
  • Items for street furniture
  • Ship and spatial yard
  • Heavy-weight metal framework
  • Earth movement machines industry
  • Toy and leisure industry
  • Energy distribution
  • Conditioning
  • Road and railway infrastructures
Tools
Alpha 160 Accessori
