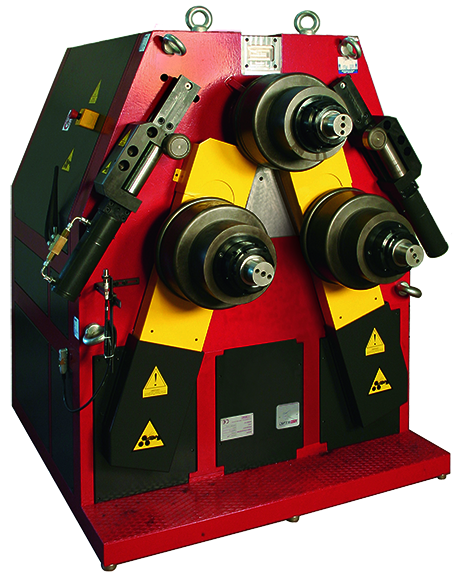

Alpha 120
The ALPHA 120 takes its success to the versatility, competitiveness and profitability of the entire Alpha series, characterized by an innovative system that controls the bending axis movement with rectilinear and convergent guides. Very popular in small and medium carpentry, has found a special place in the processing of special coils or other artifacts used in the field of water treatment technologies and liquids in general, and in all the alternative energy industry.
Versions
Versions
- PQ10: A multi-axis positioner able to manage independently the bending machine movable elements.
- CNC4/3: Equipped with CNC4/3 control, Computerized Numerical Control with three axis able to automatically managed joints and bending radii predetermination.
- CNCi: Equipped with CNCi control, the Computerized Numerical Interpolated Control for the predetermination of the bending radii, able to manage untill 1000 steps of a virtually infinite number of storable programms.
Technical Data
Application Fields
- Driving rolls: 3
- Shaft speed (min-1): 5
- Weight (kg): 2800
- Total power (kW): 11,4
- Working height (cm): 125/110
- Size (cm): 165x170x180
| in mm | Min. R. | Tools | |
|---|---|---|---|
 | UPN 200 UPN 300 | 700 1400 | ST SP – AL – TR |
 | HEA 140 HEA 180 | 1500 1800 | RT ST – SI |
 | HEB 100 HEB 120 | 1500 2200 | ST – HE ST – HE – SI |
Application Fields
- Items for farming and breeding industry
- Items for street furniture
- Ship and spatial yard
- Heavy-weight metal framework
- Environment, food and water treatment industry
- Conditioning
- Energy distribution
- Earth movement machines industry
- Toy and leisure industry
- Road and railways infrastructures
