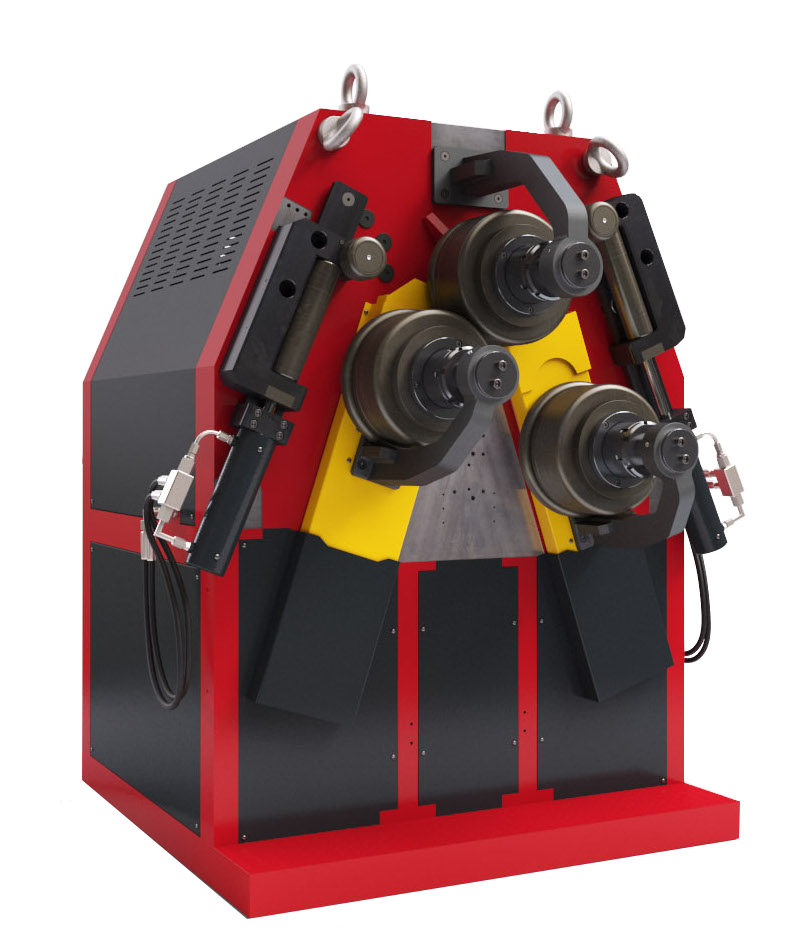

Alpha 100
The converging rectilinear guides characteristic of the Alpha series assures and improves the performances declared by the competitors, with a significant reduction of waste processing and, consequently, of the production costs.
Versions
Versions
- PQ10: A multi-axis positioner able to manage independently the bending machine movable elements.
- CNC4/3: Equipped with CNC4/3 control, Computerized Numerical Control with three axis able to automatically managed joints and bending radii predetermination.
- CNCi: Equipped with CNCi control, the Computerized Numerical Interpolated Control for the predetermination of the bending radii, able to manage untill 1000 steps of a virtually infinite number of storable programms.
Technical Data
Application Fields
- Driving rolls: 3
- Shaft speed (min-1): 6
- Weight (kg): 2000
- Total power (kW): 18
- Working height (cm): 120/110
- Size (cm): 114x145x115
| in mm | Min. R. | Tools | |
|---|---|---|---|
 | UPN 160 UPN 204 | 800 1200 | ST STP – AL – TR |
 | HEA 120 HEA 140 | 1500 1800 | ST ST – SI |
 | HEB 100 | 1400 | ST – HE – SI |
Application Fields

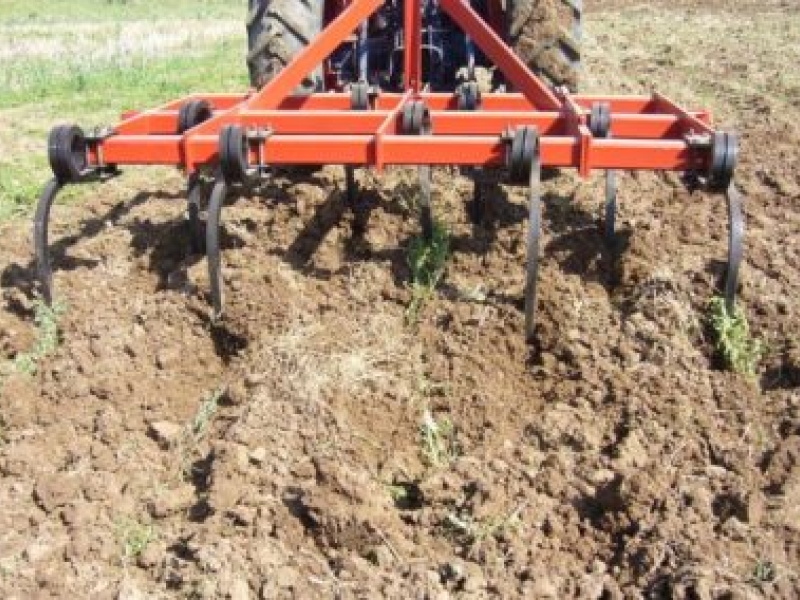

- Items for farming and breeding industry
- Items for street furniture
- Items for blacksmith
- Ship and spatial yard
- Leight-weight metal framework
- Heavy-weight metal framework
- Environment, food and water treatment industry
- Earth movement machines industry
- Toy and leisure industry
- Energy distribution
- Conditioning
