DS 200

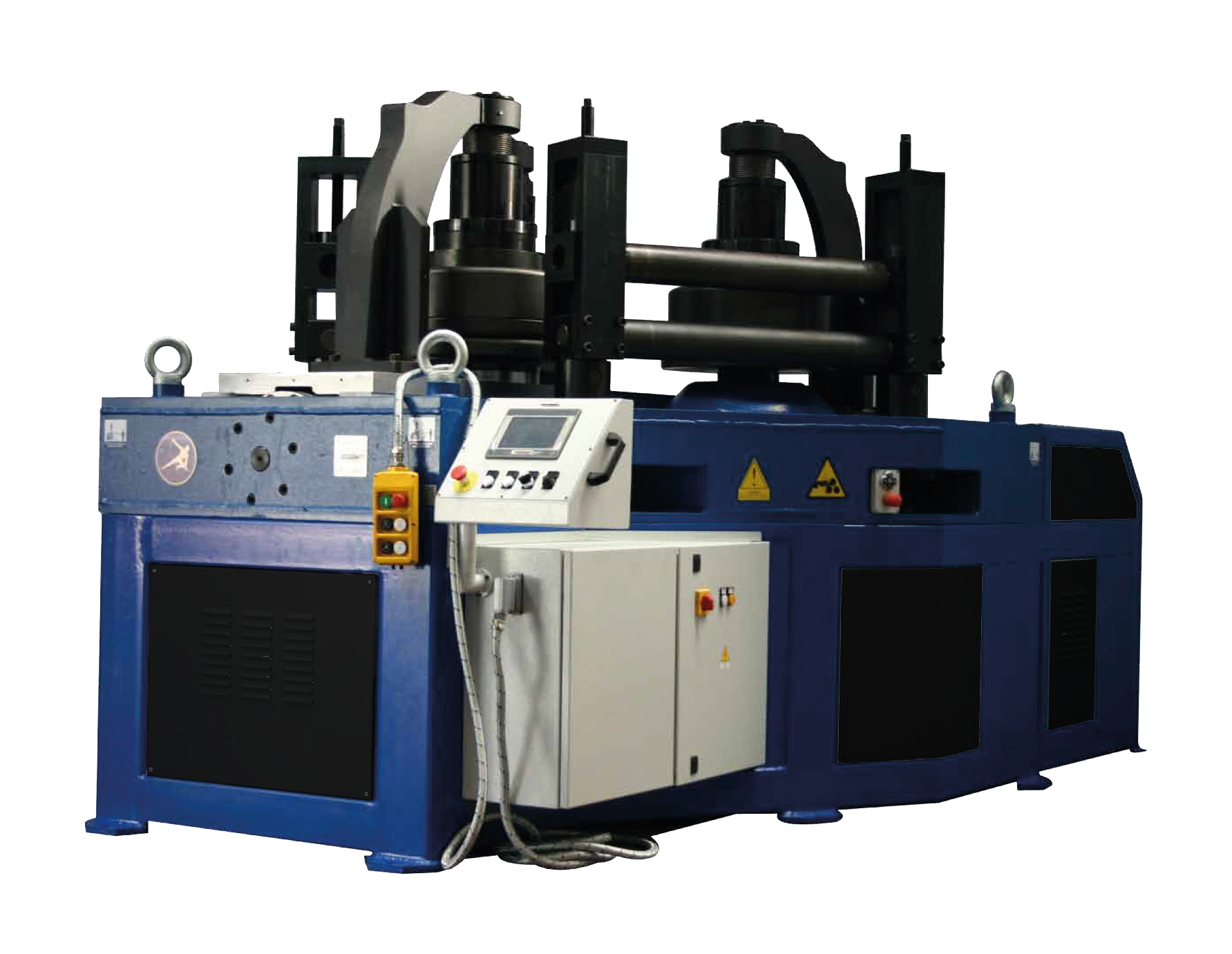

The DS200 is a pyramidal bending machine with three driving rolls electrically powered and the bending roll hydraulically adjusted.
The machine’s accurate design has allowed the realization of a bender dedicated to the production of medium-heavy carpentry that neither require the construction of expensive foundations for the stability nor the absorption of huge amounts of energy. The DS200, in fact, with an installed capacity of only 20 kW, is able to guarantee excellent performance in its category
Versions
The machine’s accurate design has allowed the realization of a bender dedicated to the production of medium-heavy carpentry that neither require the construction of expensive foundations for the stability nor the absorption of huge amounts of energy. The DS200, in fact, with an installed capacity of only 20 kW, is able to guarantee excellent performance in its category
Versions
- PQ10: A multi-axis positioner able to manage independently the bending machine movable elements
Technical Data
Application Fields
- Driving rolls: 3
- Shaft speed (min-1): 0,75-5
- Weight (kg): 10.000
- Total power (kW): 18
- Working height (cm): 130
- Size (cm): 223x350x197

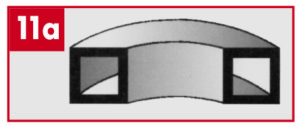

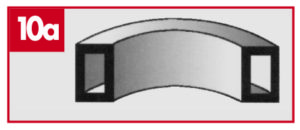

| in mm | Min. R | Tools | |
|---|---|---|---|
 | 250x150x10 300x200x12 | 5000 6000 | POL/RQ POL/RQ + SI |
 | 200x120x12 250x150x12 | 4000 6000 | POL/RQ POL/RQ + SI |
 | 180x180x12 200x200x12 | 5000 6000 | POL/RQ POL/RQ + SI |
- Items for street furniture
- Ship and spatial yard
- Heavy-weight metal framework
- Earth movement machines industry
- Toy and leisure industry

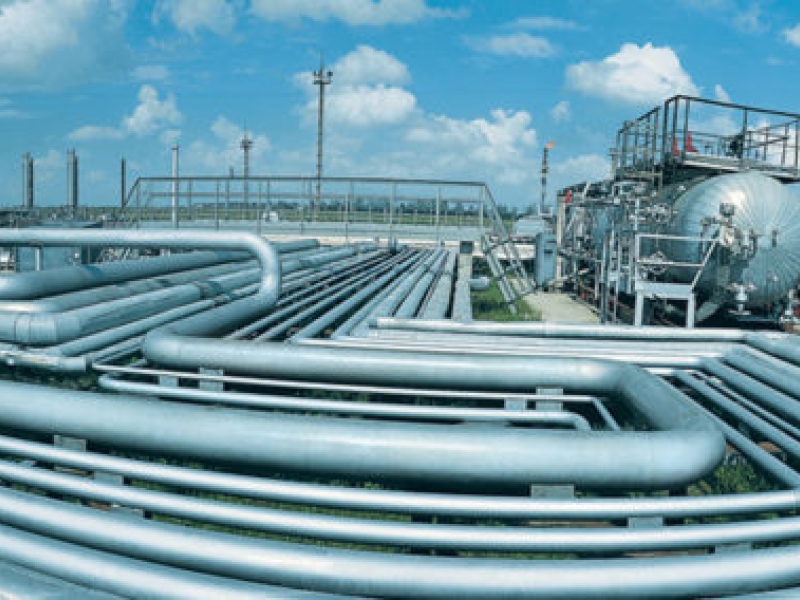

- Road and railway infrastructures
