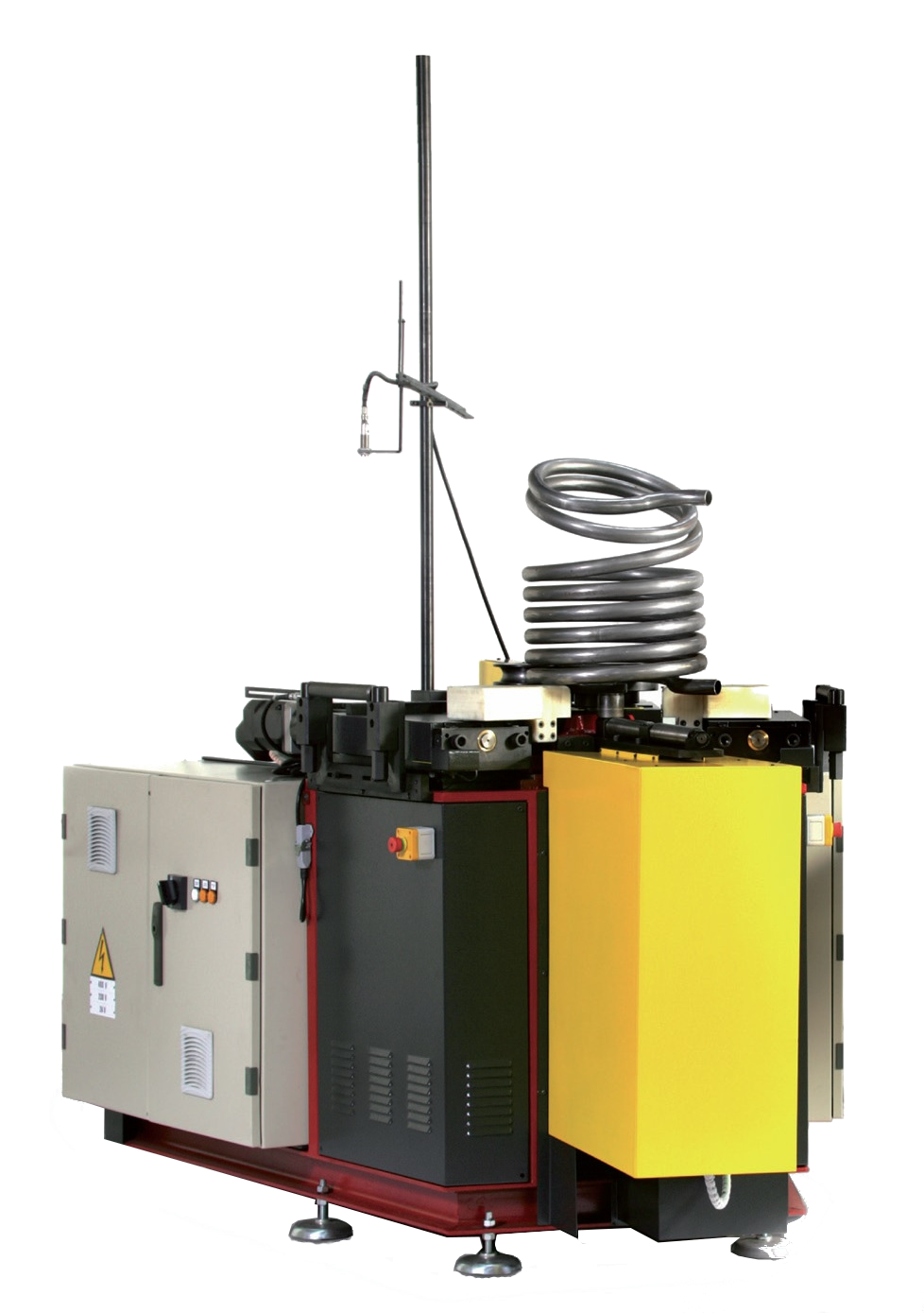

Coiler 60

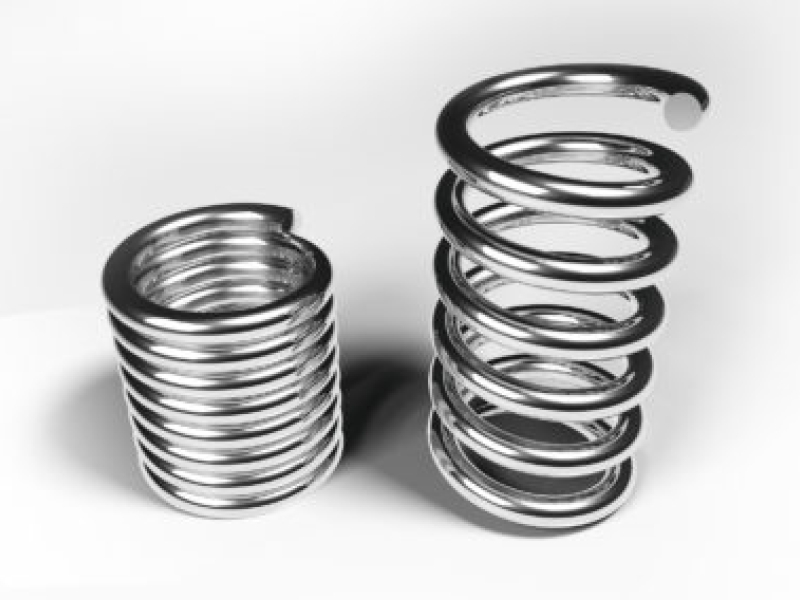

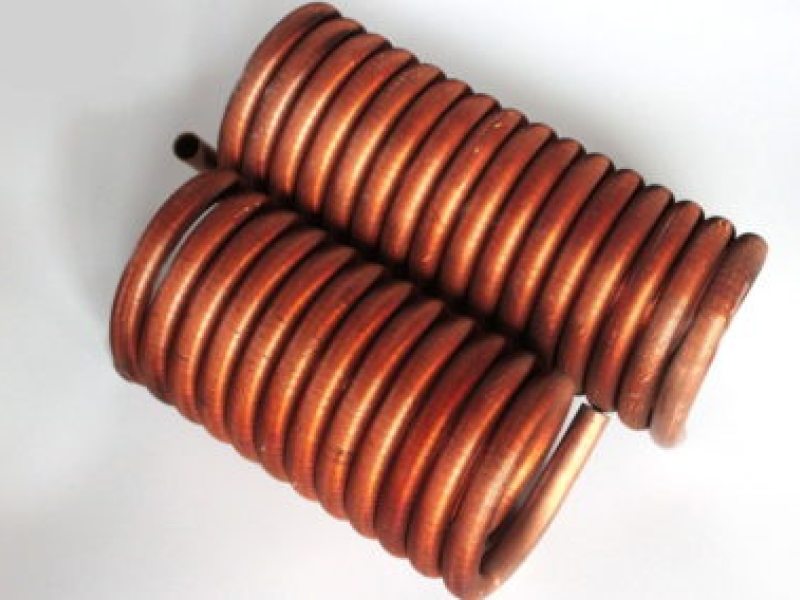

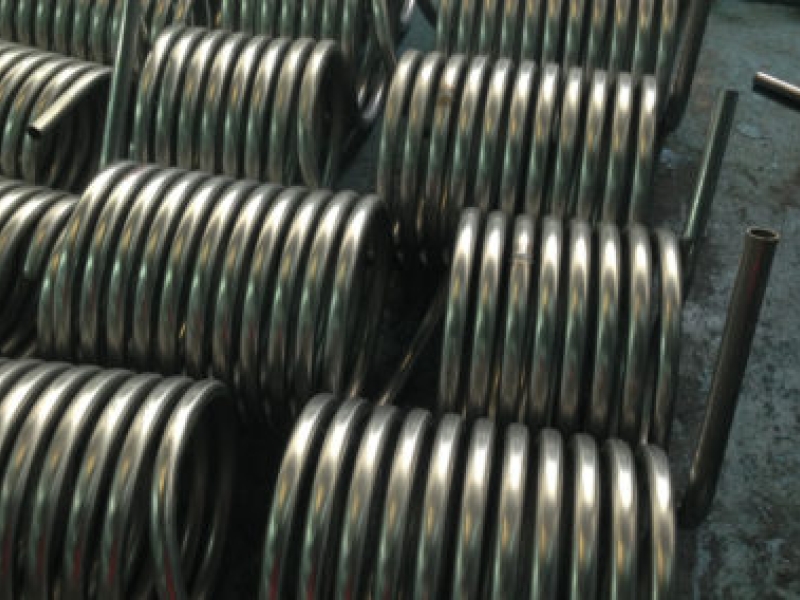

The COILER 60 is the only bending machine in the world able to achieve in a single pass, with no need of further bending process, a variety of coils of a lot of shapes, with particularly reduced radii and with the tang counter bending. The complete electric movement with brushless motors ensures accuracy, repeatability, execution speed and top quality work with significant results of high productivity. The Alpha 60 is a bending machine belonging to the series of the lower rolls double independent adjustment on straight and converging slides. This particular geometry has been studied to minimize the roundness of the tube in the bending. The driving axis are managed by single and dedicated engines and, like all the other machine axis, they are automatically handled by the renewed computer with Wiantu software, that allows the fast and accurate creation of any type of coil, with the complete management of all reference data (diameters, steps, coils, control of the pitch, counter-bends).
Versions

CNCi:Equipped with CNCi control, the Computerized Numerical Interpolated Control for the predetermination of the bending radii, able to manage untill 1000 steps of a virtually infinite number of storable programms

Technical Data
